The vacuum furnace range offered by Carbolite Gero includes vacuum chamber furnaces, vacuum hood furnaces, bottom loading furnaces, laboratory vacuum furnaces, and vacuum tube furnaces. Each furnace can be used with either a reactive gas or an inert gas. The majority of products in our vacuum furnace range are available with either metal, graphite, or ceramic insulation. On request, graphite models can be configured to safely operate at up to 3000°C.

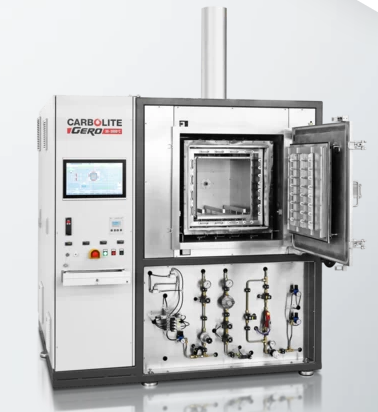

1. Vacuum Chamber Furnace

• CHAMBER FURNACE, METAL INSULATION – HTK
  • Max temp: 1600 – 2200 °C
  • Insulation material: Molybdenum or Tungsten
  • Volumes: 8 to 80 litres
• CHAMBER FURNACE, GRAPHITE INSULATION – HTK GR
  • Max temp: 2200 °C
  • Insulation material: Graphite
  • Volumes: 8 to 600 litres
• CHAMBER FURNACE, CERAMIC FIBRE INSULATION – HTK KE
  • Max temp: 1350 °C
  • Insulation material: Ceramic fibre
  • Volumes: 8 to 600 litres

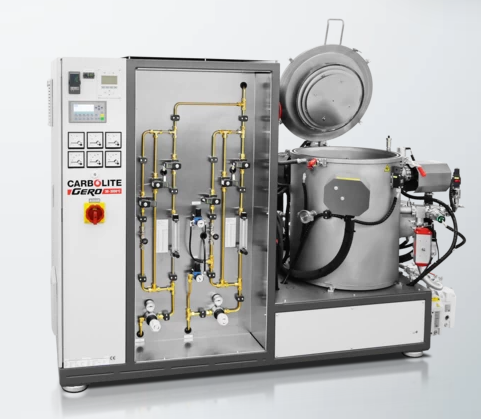

• ANNEALING FURNACE – GLO
  • Max temp: 600 – 1100 °C
  • Volume: 10 to 260 litres
  • For processes in which a specific atmosphere needs to be reliably maintained

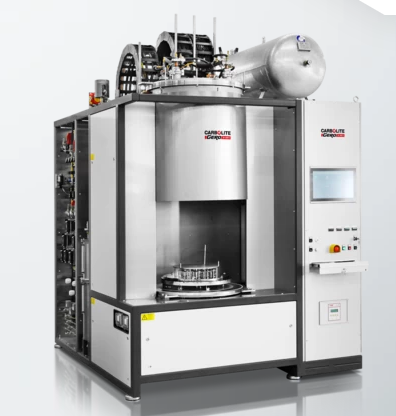

2. Vacuum Hood Furnace:

• TOP HAT FURNACE – HBO
  • Max temp: 1600 – 2200 °C
  • Insulation material: Molybdenum or Tungsten
  • Volumes: 10 to 60 litres
• TOP HAT FURNACE – V-L
  • Max temp: 1050 °C
  • Volume: 7.6 to 95 litres
  • Automatic tube furnace for applications in atmospheres with highest possible purity

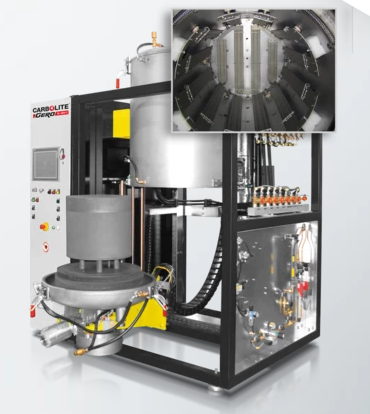

3. Vacuum Bottom Loader Furnace:

• BOTTOM LOADING FURNACE, METAL INSULATION – HTBL MO/W
  • Max temp: 1600 – 2200 °C
  • Insulation material: Molybdenum or Tungsten
  • Volume: 60 litres
• BOTTOM LOADING FURNACE, GRAPHITE INSULATION – HTBL GR
  • Max temp: 2200 °C
  • Insulation material: Graphite
  • Volumes: 50 to 200 litres

4. Vacuum Laboratory Furnace:

• LABORATORY FURNACE, METAL INSULATION (LHTM/W)
  • Max temp: 1600 – 2200 °C
  • Insulation material: Molybdenum or Tungsten
  • Volumes: 1.5 to 10 litres
• LABORATORY FURNACE, GRAPHITE INSULATION (LHT GR)
  • Max temp: 2200 – 3000 °C
  • Insulation material: Graphite
  • Volumes: 1.5 to 10 litres

5. Vacuum Tube Furnace:

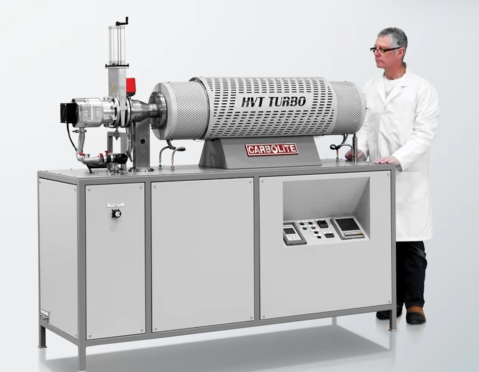

• HIGH VACUUM TUBE FURNACE – HVTT
  • Max temp: 1200 – 1500 °C
  • Heated lengths: 450, 550, 700 mm
  • Worktube inner diameters: 50, 60, 75 or 80 mm
  • Vacuum: 10 -5 mbar
• HYDROGEN TUBE FURNACE UP TO 1600 °C – HTRH-H2
  • Max temp: 1600 °C
  • Heated length: 600 mm
  • Furnace Ø: 100 mm
  • Any model from the FHA/FHC, HTRH and HTRV series may be equipped with this Hydrogen option
