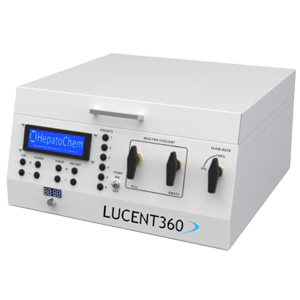

The Lucent360™ Advanced Photoreactor enables parallel (screen), batch and flow with wavelength, light intensity and temperature control in one device.
The Lucent360™ Advanced Photoreactor is the most comprehensive photoreactor on the market. It’s patent pending design provides the most flexibility for parallel, large batch and flow photochemistry. Reaction vials are immerged in a thermostatic bath controlled by an external heater/ chiller unit, enabling temperature controlled experiment conditions. Light irradiation is provided by custom, interchangeable light modules that surround the reaction chamber. The reaction chamber itself is comprised of 2 glass walls (Dewar) that thermally insulate light sources from the reaction vial bath.

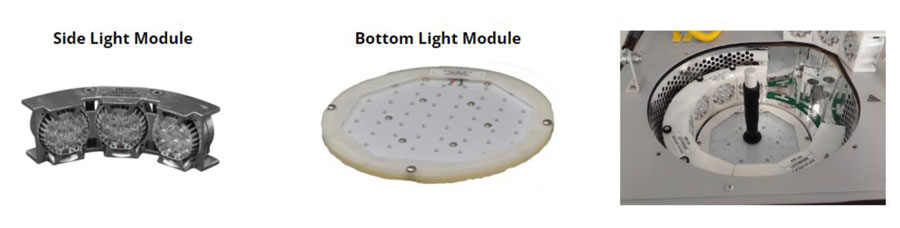

The Lucent360™ includes 5 light modules that can be controlled independently. Each module has multiple LEDs that operate at a specific wavelength.
The light modules are interchangeable and, when using a light screening holder in the reaction chamber, enables conditions that can screen multiple wavelengths or light intensities simultaneously.
254 nm, 300 nm, 310 nm, 340 nm, 365 nm, 380 nm, 390 nm, 405 nm, 427 nm, 440 nm, 450 nm, 475 nm, 505 nm, 650 nm, and 740 nm.

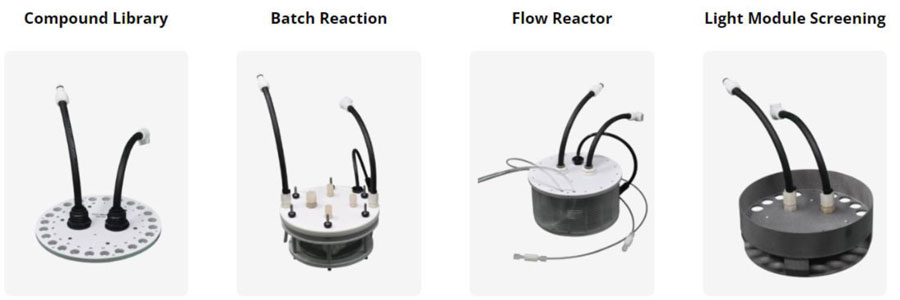

The Lucent360™ advanced photoreactor includes standard circulation ports on all of its vial holders as well as an internal water pump and high performance heat exchanger.
Connecting the Lucent360™ to a standard heater/chiller unit enables accurate temperature controlled reaction conditions (0° to 80° C) that are insulated from the heat of light modules.
A temperature probe (included) can also connect to each of the Lucent360™ vial holders, allowing for precise measurements. Fill and flow rate is controlled by the manual valves accessed on the front panel.
