Standard
Specification / Model |
NAGS 20 | NAGS 100 | NAGS 500 | NAGS 1000 |
Max. working Pressure ( Mpa ) | 200 | 250 | 250 | 150 |
Chamber diameter | Ø0.1, Ø0.15 | Ø0.1, Ø0.15, Ø0.2 | Ø0.1, Ø0.15, Ø0.2 | Ø0.45 |
Processing quantity
(per hour) |
2 L/h | 9 L/h | 70 L/h | 500 L/h |
External dimension (WxDxH,mm) | 630x480x580 | 1220x920x1450 | 1660x1640x1720 | 1220x2300x1900 |
Motor Capacity | 0.75 kW | 6 kW | 11 kW | 30 kW |
Weight | 50 kg | 580 kg | 1000 kg | 1500 kg |
Voltage | 200 V | 200 V | 200 V | 400 |
THE TECHNOLOGY:
*Wet type Jet Mill
Jokoh Nano Jet Pul® is a Wet type Jet Mill to atomize slurry samples. Uniform particles size distribution, stable Nano emulsions, superior de-agglomeration particle dispersions can be obtained at high pressure maximum of 250MPa.

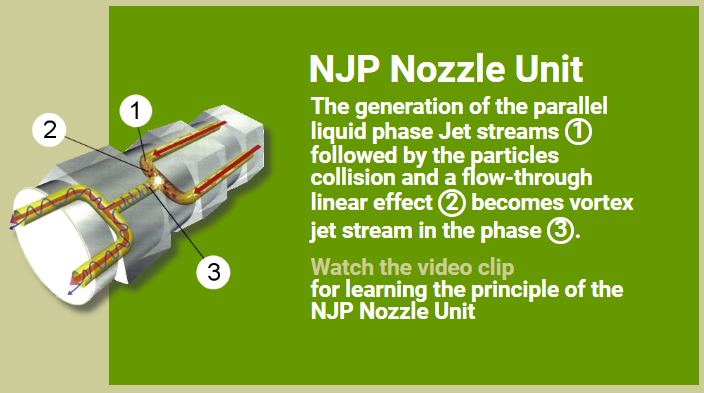

Samples passing through the high pressure pumping system flowing into the micro channels of the NJP nozzle unit, work efficiently to transform high energy in a very high speed flow and shear action to obtain uniform minute particles.

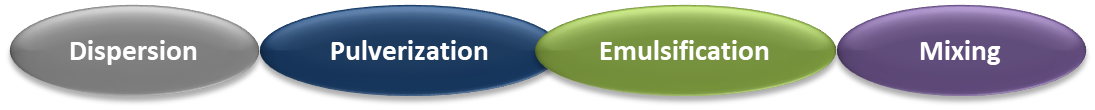

Applications:

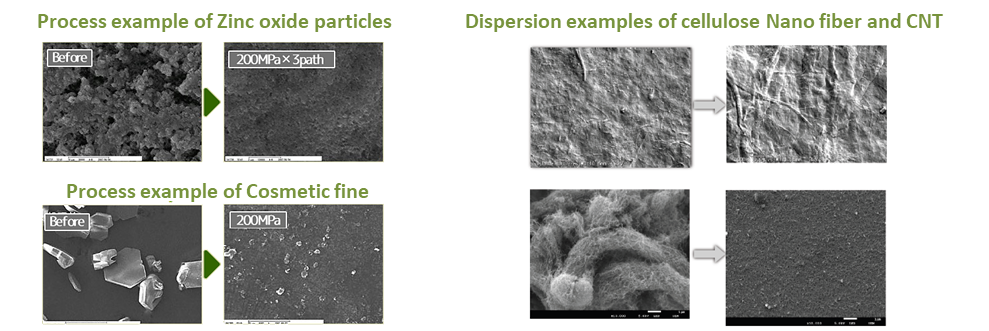

Example applications:
