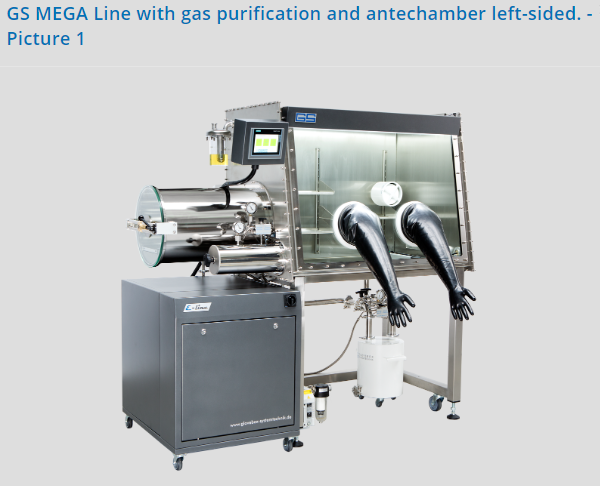

Glovebox
- High quality manufacturing ISO 9001:2008
- Leak test according to ISO 10648-2, Class 1
- Stainless steel 1.4301 (AISI 304)
- Different sizes and shapes for 2, 3, 4 and more gloves
- Double-sided versions
- Modular design for high flexibility (expandable)

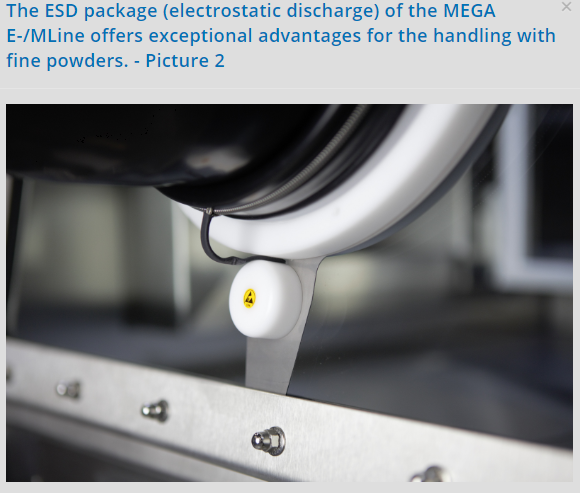

- ESD package (electrostatic discharge)
- HEPA H14 filters

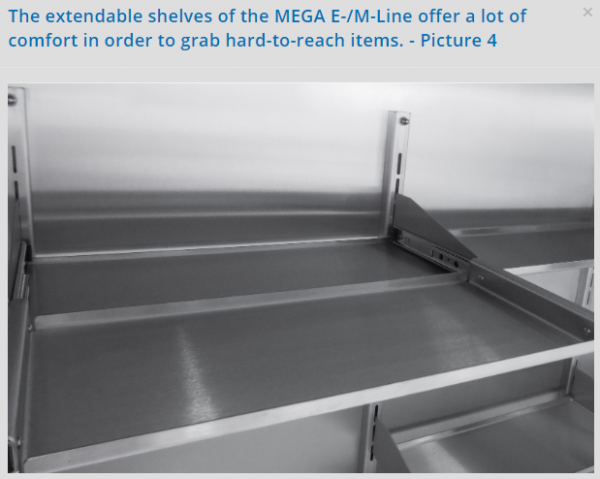

- Extendable shelves
- High performance LED – pure white
- Front window in safety glass, easy to disassemble
- Leveling feet and solid base stand with castors
Details of glovebox dimensions >>>
Gas Purifier E-Line | M-Line
- Filter columns for the removal of O2 and H2O
- Achievable values for O2 and H2O < 1 ppm
- Sensors for O2, H2O and pressure
- Lock off valve for O2 sensor
- Fully automated purification, purging and regeneration
- For gloveboxes up to 5,2 m³
- E-Line (1 filter column) and M-Line (2 filter columns)
- GS ECO-Safety Mode < 100 W for standard system
- Siemens PLC with 7“ color touch screen
- Intuitive GS software
- Recording of values for O2, H2O and pressure for 60 days
- Reading of the recorded data via USB interface
- Alarms for O2 and H2O values

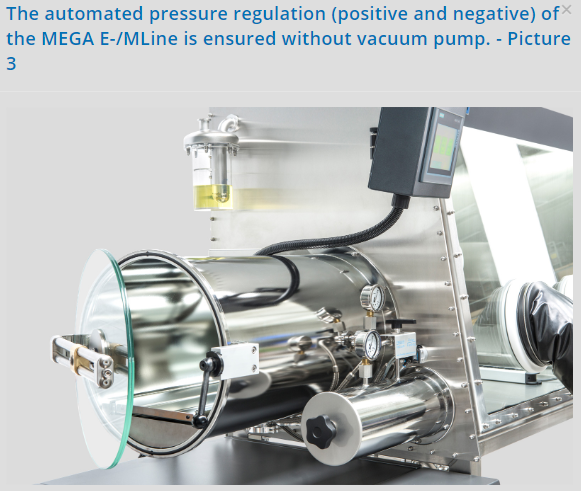

Antechamber
- Standard antechambers in d = 400 mm and d = 150 mm
- Glass doors for d = 400 mm antechambers
- Automated antechamber cycles
- Optional: Easy-Close-System (inner door closes automatically)
- Different antechamber sizes and shapes available
- Heating option available
Attachments
- Solvent vapor removal (also regenerative)
- Freezer up to −40 °C
- Spin coater
- Vacuum deposition – evaporating chambers
- Laminar-Flow-Module
- Further individualized solutions available
